Press-Fit Branch Clamps Type OAP-2T are designed for branching from main hollow aluminum conductors during busbar installations in open switchgear. The application of thermodynamic copper coating on the contact surface of the clamps increases the coating thickness, extends the service life of the clamps up to 40 years, and significantly improves the quality of the electrical contact. The products are manufactured in accordance with TU 3449-001-52819896-2010.

Technical Characteristics:

• OAP-500-2T:
  • Conductor Type: PA500
  • Crimping Die: A-59

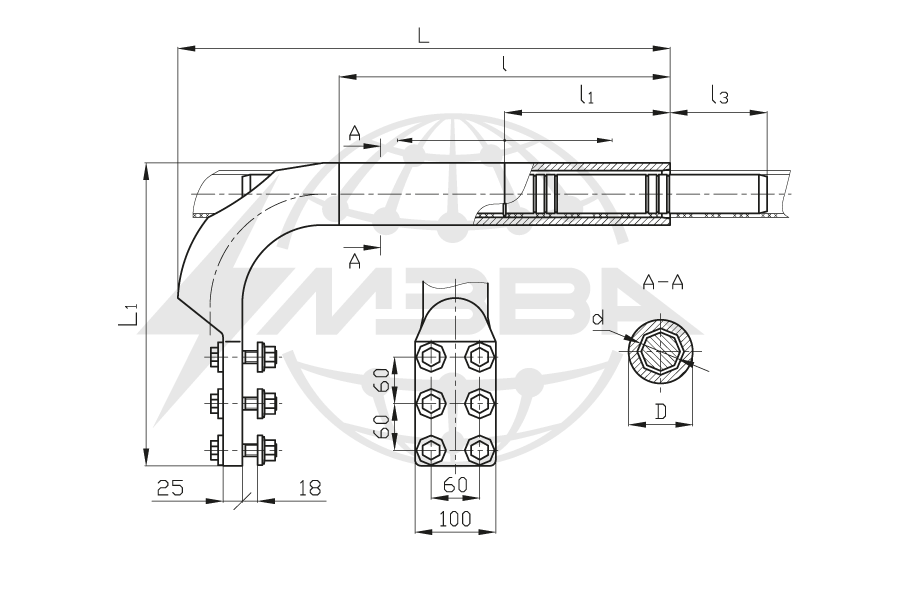

  • Dimensions:
    • B: 58 mm
    • D: 65 mm
    • d: 47 mm
    • L: 478 mm
    • L1: 260 mm
    • l: 350 mm
    • l1: 175 mm
    • l3: 95 mm
  • Weight: 4.6 kg
• OAP-640-2T:
  • Conductor Type: PA640
  • Crimping Die: MSH-70 - 80
  • Dimensions:
    • B: 60 mm
    • D: 610 mm
    • L1: 390 mm
    • l: 410 mm
    • l1: 205 mm
    • l3: 120 mm
  • Weight: 9.8 kg
